Vectors: Exercises and Solutions

A vector can represent the state of a system as a point in state space.
The point moves along a trajectory generated by the dynamics of the system.
The dynamics is typically represented by differential equations.

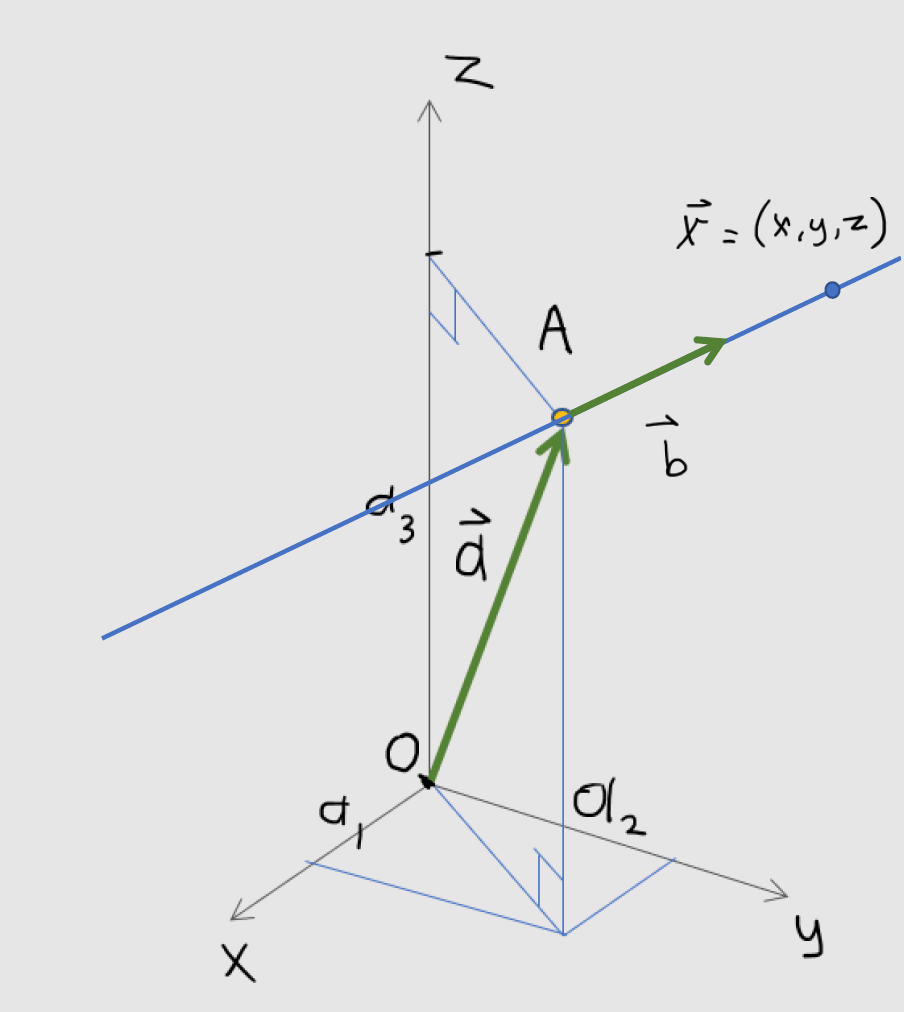

Line

Vector equation for the line:

$$\vec{x} = \vec{a} + \lambda \vec{b}, \quad \lambda \text{ scalar}$$

Corresponds to 3 scalar equations:

\[ \begin{aligned} x &= a_1 + \lambda b_1 \quad \Rightarrow \lambda = \frac{x - a_1}{b_1}, \\ y &= a_2 + \lambda b_2 \quad \Rightarrow \lambda = \frac{y - a_2}{b_2}, \\ z &= a_3 + \lambda b_3 \quad \Rightarrow \lambda = \frac{z - a_3}{b_3}. \end{aligned} \]

(Assume none of \( b_1, b_2, b_3 \) is zero)

Cartesian equations for the line:

$$\frac{x - a_1}{b_1} = \frac{y - a_2}{b_2} = \frac{z - a_3}{b_3}$$
Image of a vector 1

Dot product (scalar product)

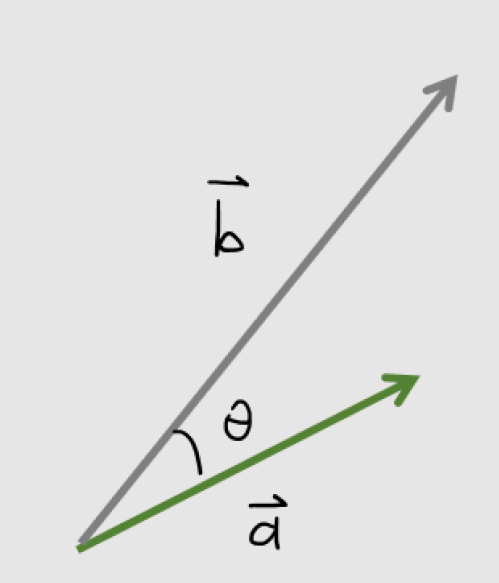

Given two vectors a and b, there is a unique angle 0 ≤ θ <π between them.

Definition of the dot product:

Image of a vector 2
$$\vec{a} \cdot \vec{b} = |\vec{a}| |\vec{b}| \cos \theta$$

Its properties:

  1. $$\vec{a} \cdot \vec{b} = \vec{b} \cdot \vec{a}$$
  2. $$\vec{a} \cdot (\vec{b} + \vec{c}) = \vec{a} \cdot \vec{b} + \vec{a} \cdot \vec{c}$$
  3. $$(k \vec{a}) \cdot \vec{b} = k (\vec{a} \cdot \vec{b})$$

In addition

$$\vec{a} \cdot \vec{b} = (a_1 \hat{i} + a_2 \hat{j} + a_3 \hat{k}) \cdot (b_1 \hat{i} + b_2 \hat{j} + b_3 \hat{k})$$
$$= a_1 b_1 (\hat{i} \cdot \hat{i}) + a_1 b_2 (\hat{i} \cdot \hat{j}) + a_1 b_3 (\hat{i} \cdot \hat{k})$$ $$+ a_2 b_1 (\hat{j} \cdot \hat{i}) + a_2 b_2 (\hat{j} \cdot \hat{j}) + a_2 b_3 (\hat{j} \cdot \hat{k})$$ $$+ a_3 b_1 (\hat{k} \cdot \hat{i}) + a_3 b_2 (\hat{k} \cdot \hat{j}) + a_3 b_3 (\hat{k} \cdot \hat{k})$$

Since \(\hat{i} \cdot \hat{i} = \hat{j} \cdot \hat{j} = \hat{k} \cdot \hat{k} = 1\) and all other dot products are zero:

$$\vec{a} \cdot \vec{b} = a_1 b_1 + a_2 b_2 + a_3 b_3 = \sum_{n=1}^{3} a_n b_n$$

The angle between two vectors

Derivation of the formula for the angle between two vectors:

$$\vec{a} \cdot \vec{b} = |\vec{a}| |\vec{b}| \cos \theta = a_1 b_1 + a_2 b_2 + a_3 b_3$$

Compute \(\cos \theta\):

$$\cos \theta = \dfrac{a_1 b_1 + a_2 b_2 + a_3 b_3}{|\vec{a}| |\vec{b}|}$$
$$\theta = \cos^{-1} \!\Bigg( \dfrac{a_1 b_1 + a_2 b_2 + a_3 b_3}{|\vec{a}| |\vec{b}|} \Bigg)$$

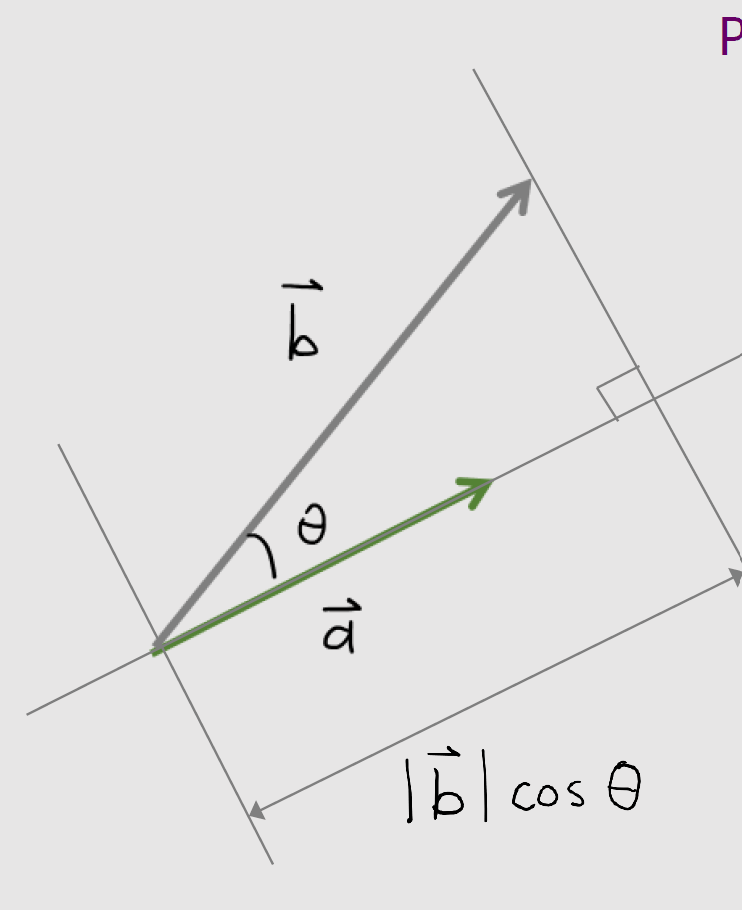

Projection

Derivation of the formula for the projection of b along the direction of a

Image of a vector 3

$$\vec{a} \cdot \vec{b} = |\vec{a}| |\vec{b}| \cos\theta$$

$$|\vec{b}| \cos\theta = \dfrac{\vec{a} \cdot \vec{b}}{|\vec{a}|}$$

$$|\vec{b}| \cos\theta = \vec{b} \cdot \left( \dfrac{\vec{a}}{|\vec{a}|} \right)$$

$$|\vec{b}| \cos\theta = \vec{b} \cdot \hat{a}$$

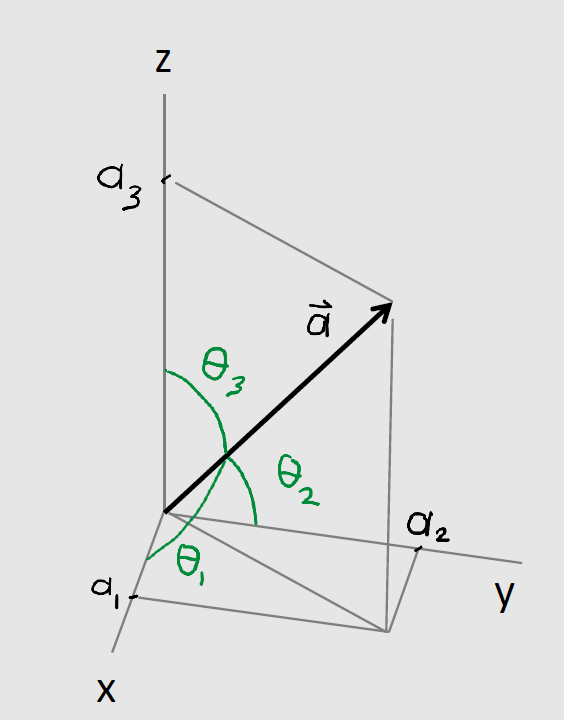

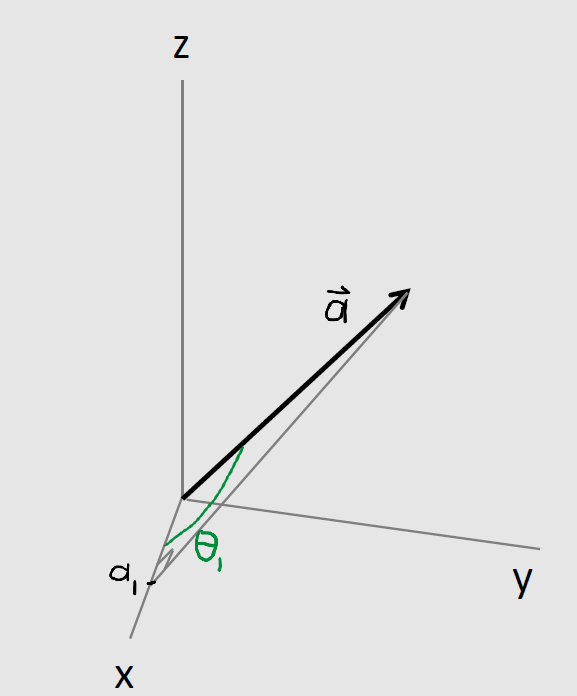

Direction cosines of a vector

$$\cos\theta_1 = \frac{a_1}{|\vec{a}|}$$

Image of a vector 4

Direction cosines of a vector are the cosines of the angles between the vector and each of the three coordinate axes.
They represent the direction of the vector by showing how much it “aligns” with each axis.

$$\cos\theta_1 = \frac{a_1}{|\vec{a}|}$$

$$\cos\theta_2 = \frac{a_2}{|\vec{a}|}$$

$$\cos\theta_3 = \frac{a_3}{|\vec{a}|}$$

Image of a vector 4

Practice Exercises

Exercise 1

Given u = (1,2,3) and v = (0,1,2), calculate the vector projection of u along the direction of v.
The formula for vector projection is:

\( (\vec{u} \cdot \vec{v})\vec{v} \)

View the solution

Exercise 2

Given the points A (1,-1,0) and B (2,1,2), determine the Cartesian equations for the line which contains A and B.

View the solution

Exercise 3

What is the angle between the vectors u = (1,-1,0) and v = (2,1,2)?

View the solution

Exercise 4

Given the vectors u = (2,-1,3) and v = (3,0,4), what is the vector projection of u in the direction of v?

View the solution

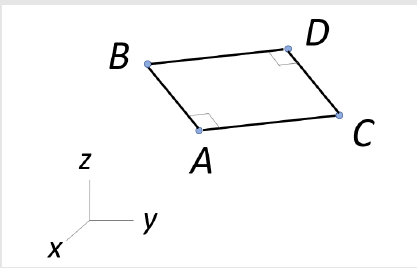

Exercise 5

The points A (1,2,2), B (2,-1,0), C (4,5,-1) and D are located in 3-dimensional space at the
corners of a rectangle, with adjacent sides AB and AC. Find the coordinates of point D.

Image of a vector in Exercise 5 View the solution

Exercise 6

Find the midpoint of the rectangle in the previous question.

View the solution

Exercise 7

Write a set of Cartesian equations for the line that contains the point A (1,0,0) and is parallel to the vector b = (0,1,1).

View the solution
